PowerRack-110
PowerRack 110For trade/industry and large residential buildings Nominal capacities from 40kWh to 110kWh Charging/discharging capacities from 18kW to 36kW per PowerRackIn the multicluster with up to 990kWh and 72kW or more power Thanks to a special BMS, our storage can be expanded indefinitely. 1-phase or 3-phase - just as you wish TESLA battery modules inside
PowerRack-110 - SHOP-LINK

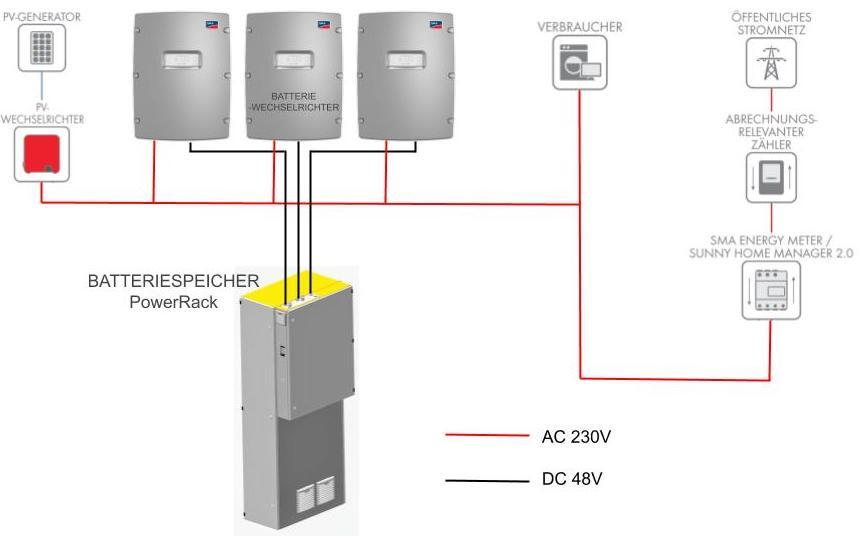

Inexpensive solar power for businesses and large residential buildings with a powerful solar system of >40kWp, possibly a heat pump and/or e-vehicle(s).With the PowerRack, you can supply yourself with your solar energy self-sufficiently for many months of the year.The excess solar energy during the day is stored and used in the evening and at night. In addition, consumption peaks are capped during the day. If the solar yield is currently not sufficient, energy is added from the storage. The PowerRack-40 & -60 can be used with any existing solar inverter. Your new battery and the new battery storage have no points of contact with the existing solar system. Simply in each household or commercial operation. The following is an example of the structure of a system with three battery inverters and a "Power&Storage PowerRack-110":

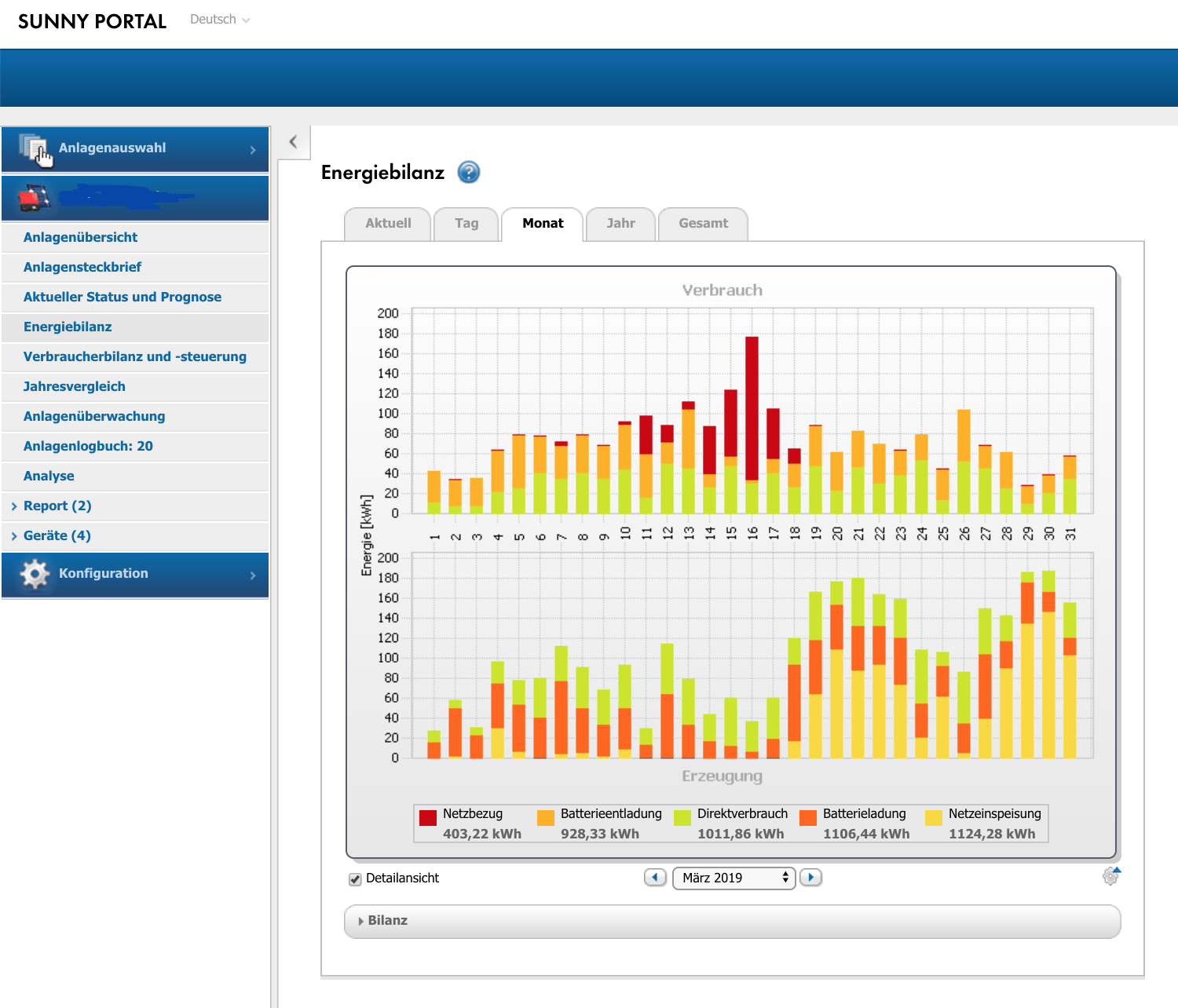

As an intelligent central organ, the SMA-HM-2.0 monitors all three phases of the house connection as a balancing counter and power meter. It also provides the visualization in the Sunny Portal, so that the current energy flow can be displayed on the PC and all mobile end devices. Extensive statistics and visualizations can be called up in the Sunny portal. Picture below: Monthly energy balance in the SMA Sunny portal - battery storage PowerRack-110kWh / 46kWp-photovoltaic
In the excerpts below from the extensive visualizations, the energy flows within the system are shown as examples for battery charging and discharging.
With modern battery storage systems based on lithium, you are able to significantly increase your degree of self-sufficiency from the solar system over decades. In this way, you significantly reduce your energy purchase costs.
PowerRack-110 Shop-Link

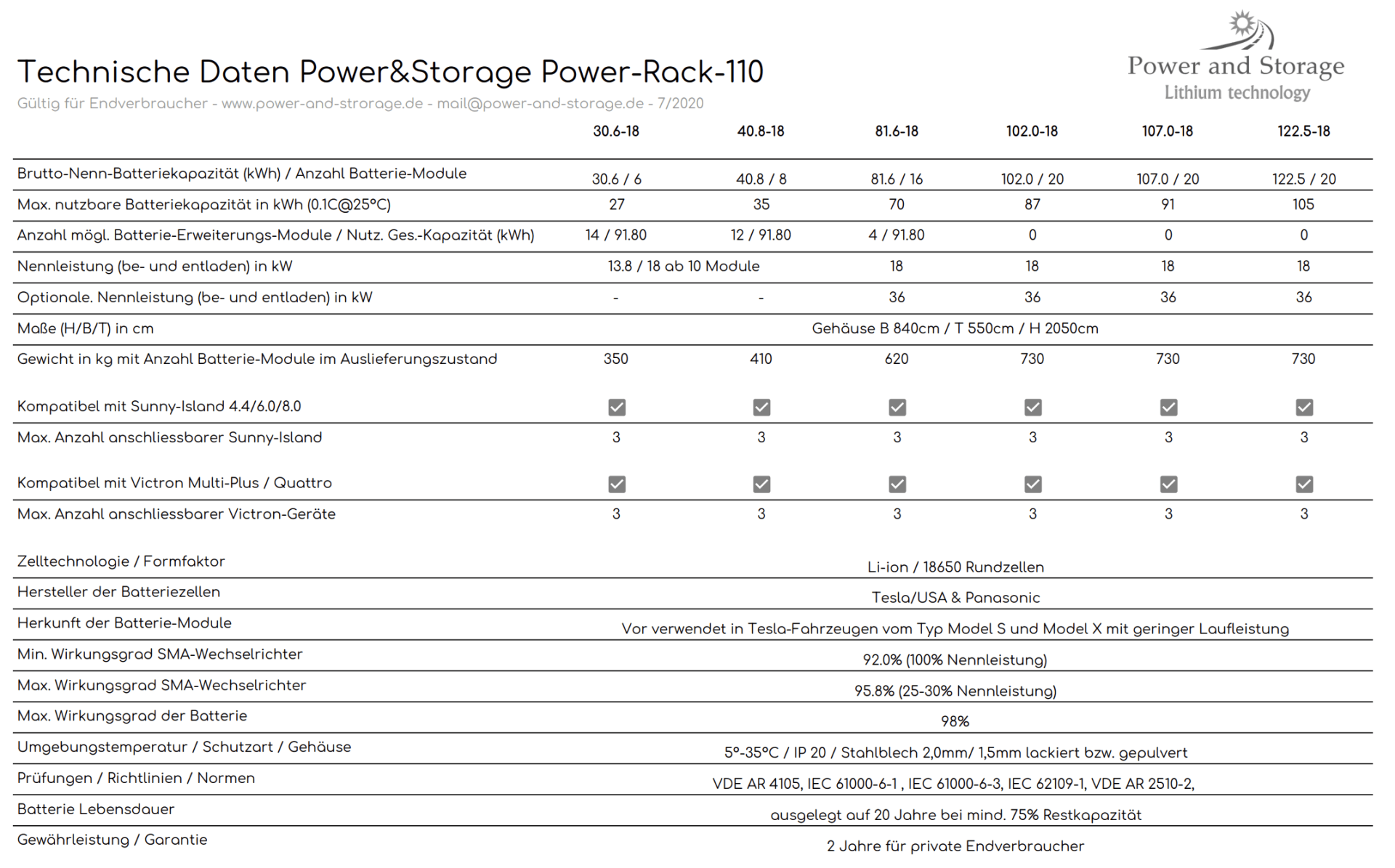

Data sheet: PowerRack-110 download link
